Gates allow you to change the way your pipes work, including detecting whether items are going through them and many other useful tasks.

Why Gates?Edit

Gate
Spartan322Added by Spartan322

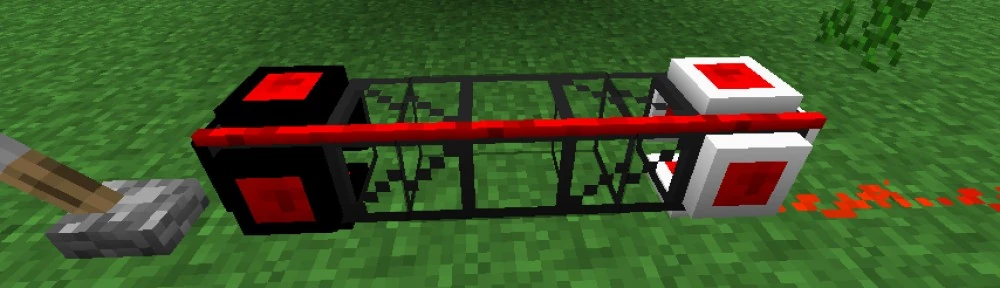

Gates have been added to the mod to provide a method of controlling things from a distance. They can do all sorts of useful things, like detect when an item is traversing the pipe, detect the state of adjacent machines and containers. When used with Pipe Wires, the possibilities are endless!

GateEngineHeatFailsafe

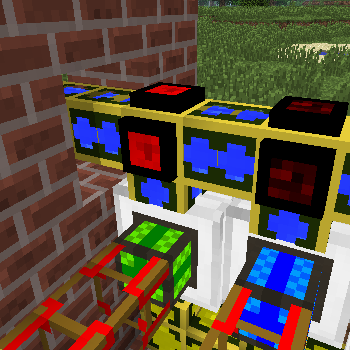

Simple gate usage to turn off engine if it goes yellow.
Iamtk421Added by Iamtk421
GateGUI
The gate gui configured to keep the engine running so long as it is green.
Iamtk421Added by Iamtk421

As an example, a basic gate can be used as a overheat failsafe on a combustion engine. Simply add the gate to the supply pipe adjacent to the engine, then set the GUI so that an engine heat of green outputs a redstone signal.

Turn the engine on, then once the engine is green you can switch it off and the gate will keep it running until such time as the water supply runs out and the engine turns yellow.

Adding a second gate to one of the other pipes with a redstone output set on blue engine state allows the engine to run without manual control and start back up again once the engine has cooled down.

Types of GatesEdit

  • BuildCraft 3.1.5
    • Basic Gate (1 Slot)
    • Iron AND Gate (2 Slots)
    • Iron OR Gate (2 Slots)
    • Gold AND Gate (4 Slots)
    • Gold OR Gate (4 Slots)
    • Diamond AND Gate (8 Slots)
    • Diamond OR Gate (8 Slots)
  • Buildcraft 3.1.6+
    • Autarchic Gate
    • Autarchic Iron AND Gate
    • Autarchic Iron OR Gate
    • Autarchic Gold AND Gate
    • Autarchic Gold OR Gate
    • Autarchic Diamond AND Gate
    • Autarchic Diamond OR Gate

Additionally, once crafted, gates can be transformed using regular crafting to/from AND to OR in the same class with the addition of a new redstone chipset.

InputsEdit

  • From Pipes:
    • Item traversing
    • Power traversing
    • Liquid traversing
    • Pipe empty
  • From Chest:
    • Chest empty
    • Chest full
    • Space for items in chest
  • From Tank:
    • Tank empty
    • Tank full
    • Space for liquid in tank
  • Other:
    • Redstone signal
    • Engine state
    • Machine on
    • Machine off
    • Pipe Wire signals (Various colors)

The simplest gate can't make use of pipe wire signaling at all. Iron gates can only connect to red wires, gold gates can connect to red and blue, and diamond can use all four colors.

UsesEdit

  • Normal Gate
    • Control Liquid Pumping from Tanks.
    • Turn ON engines.
    • Turn OFF engines to prevent overheating.
    • Control Liquid Flow through pipes.
  • Autarchic Gate
    • Pull content from chests and machines like a Redstone Engine but faster
    • Can pull liquids when attached to Wooden Liquid Pipe

Normal Gate Recipes:Edit

Gates2

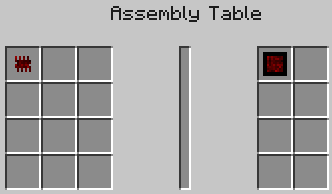

Assembly recipes for the gates
Tabea333Added by Tabea333

Gates are crafted with Assembly Table from their respective Chipsets and, with the exception of the Basic Gate, they also require Pipe Wires. Normal Gates have only one input, but the other gates have two variants, each of which is crafted separately. OR gates are activate when any one of their inputs are fulfilled, giving the programmed response. AND gates, on the other hand, only activate when all of their inputs for one type of output are fulfilled.

Basic GateEdit

Doesn't interact with wires.

Ingredients:

  • 1 x Redstone Chipset

Produces: 1 x Basic Gate

See: Crafting Guide

Iron GateEdit

Interacts with red wire only.

Ingredients:

  • 1 x Redstone Iron Chipset
  • 1 x Red Pipe Wire

Produces: 1 x Iron AND Gate or Iron OR Gate

See: Crafting Guide

Gold GateEdit

Interacts with red and blue wires.

Ingredients:

  • 1 x Redstone Golden Chipset
  • 1 x Red Pipe Wire
  • 1 x Blue Pipe Wire

Produces: 1 x Gold AND Gate or Gold OR Gate

See: Crafting Guide

Diamond GateEdit

Ingredients:

  • 1 x Redstone Diamond Chipset
  • 1 x Red Pipe Wire
  • 1 x Blue Pipe Wire
  • 1 x Green Pipe Wire
  • 1 x Yellow Pipe Wire

Produces: 1 x Diamond AND Gate or Diamond OR Gate

Interacts with all kind of wires.

Video TutorialEdit

Normal Gates - Buildcraft In Less Than 90 Seconds(01:28)
WesThorburnAdded by WesThorburn

Autarchic Gate RecipesEdit

Autarchic animatedgif

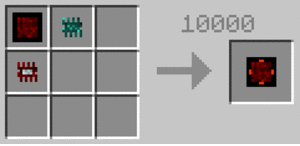

Autarchic Gates recipes on Assembly Table
SerialtastedAdded by Serialtasted

The new Autarchic Gates use a Pulsating Chipset along with Normal Gates and Redstone Iron Chipsets to be crafted.

Autarchic GateEdit

Doesn't interact with wires.

Ingredients:

  • 1 x Redstone Iron Chipset
  • 1 x Basic Gate
  • 1 x Pulsating Chipset

Produces: 1 x Autarchic Gate

Autarchic Iron GateEdit

Interacts with red wire only.

Ingredients:

  • 1 x Redstone Iron Chipset
  • 1 x Iron AND Gate or Iron OR Gate
  • 1 x Pulsating Chipset

Produces: 1 x Autarchic Iron AND Gate or Autarchic Iron OR Gate

Autarchic Gold GateEdit

Interacts with red and blue wires.

Ingredients:

  • 1 x Redstone Iron Chipset
  • 1 x Gold AND Gate or Gold OR Gate
  • 1 x Pulsating Chipset

Produces: 1 x Autarchic Gold AND Gate or Autarchic Gold OR Gate

Autarchic Diamond GateEdit

Interacts with all kind of wires.

Ingredients:

  • 1 x Redstone Iron Chipset
  • 1 x Diamond AND Gate or Diamond OR Gate
  • 1x Pulsating Chipset

Produces: 1 Autarchic Diamond Gate

Video TutorialEdit

Autarchic Gates - Buildcraft In Less Than 90 Seconds(01:25)
WesThorburnAdded by WesThorburn
